Packaging is an art in which various scientific laws work to manufacture boxes. Today, it has evolved into a more advanced form with the emergence of technology and innovative printing.

In today’s round-up, we will talk about the dieline: From its definition to its use and purpose to its end goal, we will discuss every aspect of the dieline.

Let’s begin!

What is Dieline in Packaging?

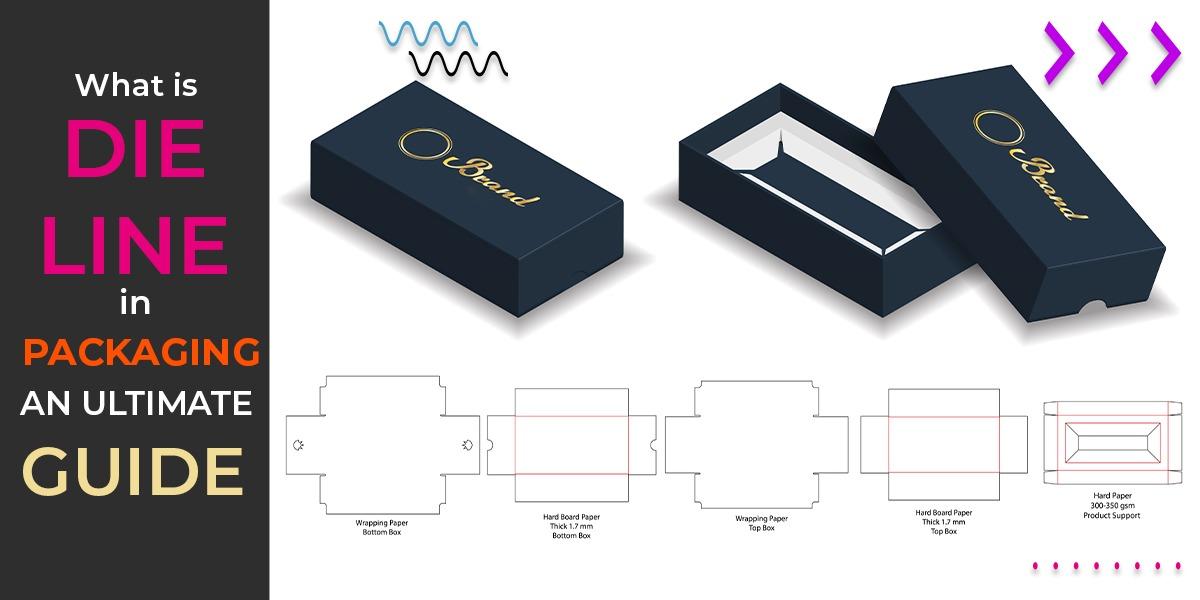

A dieline is a package template that guarantees a proper layout for a printed product. It is a diagram that displays all the cut lines and folds of a package in flattened form. Also, you can use them for various packagings like envelopes, bag folders, and more.

These dielines are like graphical representations and frameworks for the package you want to assemble. Packaging designers design these dielines depending on the size and shape, including the dimension of a box required to create and print.

Thus, you need to measure and sketch the design of boxes with the help of digital or manual design. These lines indicate the spaces and measures of different sides of the packaging.

Why do You Call It Dieline in Packaging?

As the name indicates, “dieline” is the combination of “die” and “line,” in which a graphic designer draws specific lines manually or graphically on a sheet before the production process. This design helps in creating the actual box with the given measurements. Therefore, you call them dielines.

In the packaging and printing industry, the term “dieline” these dielines are like graphical representations and frameworks for the package you want to assemble. Similarly, Packaging designers design these dielines depending on the size and shape, including the dimension of a box required to create and print.

What is the Purpose of Dieline in Packaging?

You might be thinking about how dieline works! The purpose of a dieline can explicitly indicate how it works. We can classify dieline into two parts: you can use it to make a template, and this template further helps make a steel die.

The primary purpose of dieline is to estimate the structure of boxes. This is how these dielines form the base for any design you want for your packaging. You can also calculate the media art you want to print on your packaging. You can also estimate the size and shape of different sides of your boxes.

In the end, this template you can use it to create a die, a metal plate. This metal plate cuts the material of your paper into already-measured shapes and sizes. So, this die plays a role in cutting and shaping various shapes and designs of the boxes.

Though your dielines are a “template” for your packaging, they have two purposes:

  • They allow you to lay out the various marketing elements of your packaging in a way that ascribes what goes where and how the different parts play off each other. By laying out the individual “pieces” of the document operation, if having the logo near certain graphics is too complex or if you need to add more or less text.
  • Dielines provide an aesthetic outline, but above that, they also help avoid manufacturing issues by giving the printer a blueprint to work.
  • You should not print a dieline on the final piece, but you can use it to decide on the correct layout.

What is Dieline for Labels?

What is Dieline for Labels

In general, dieline helps manufacture the template of a box, but it is equally vital for labels too. Plus, dieline defines the outline for the printing process for labeling. In simple words, this dieline template also directs the printer to print only within the specified places and points.

Symmetry and an appropriate layout for your artwork are essential for labels. Therefore, Dielines work as placeholders to create a proper form of templates that will be die-cut as part of the finishing process.

Who can Make Dieline for Packaging?

This work starts with a packaging graphic designer who designs dieline digital design using any graphic design software. Also, the team of designers calculates and estimates every part and aspect of a dieline template.

How do You Make Dieline in Design?

If you’re using Adobe Illustrator, there are a few steps you’ll want to take to set up your dielines accurately, no matter what design software you’ve used to create the artwork.

Accordingly, if you’ve used another graphic creation tool like InDesign to create your artwork, you can save it as a flattened PDF file so it can be opened in Illustrator.

From there, you’ll want to ensure that the document color mode is okay with CMYK.

Go to File > Document > Color Mode > CMYK to do this.

If you want to make a spot color swatch:

  1. Go to Window> Swatch Libraries > Color Books > Pantone+Solid Coated.
  2. When the Window of color swatches arrives, please scroll down and click on a color to add it to the swatches.
  3. Rename that swatch to Full Cut or Fold, depending on what it will be used for.

Types of Lines in Dieline

Types of Lines in Dieline

There are three main types of lines in a dieline template. These lines are used to indicate various sections and measurements.

  • A dotted perforation line
  • A cut line
  • A fold line

What are Dies in Printing?

What are Dies in Printing

A die is a tool that trims, scores or makes an impression on printed materials, and a dieline is the artwork or shape the die uses as a direction when making cuts, scores, and indentations. Dielines are critical to the package design process and are designed using a precise set of regulations and industry standards.

Wrapping Up

Thus, dies are used in manufacturing to create packaging after creating dieline by graphic designing. Dieline is used to prepare to die of specific dimensions, which eventually helps cut and label various paper materials to assemble boxes.
